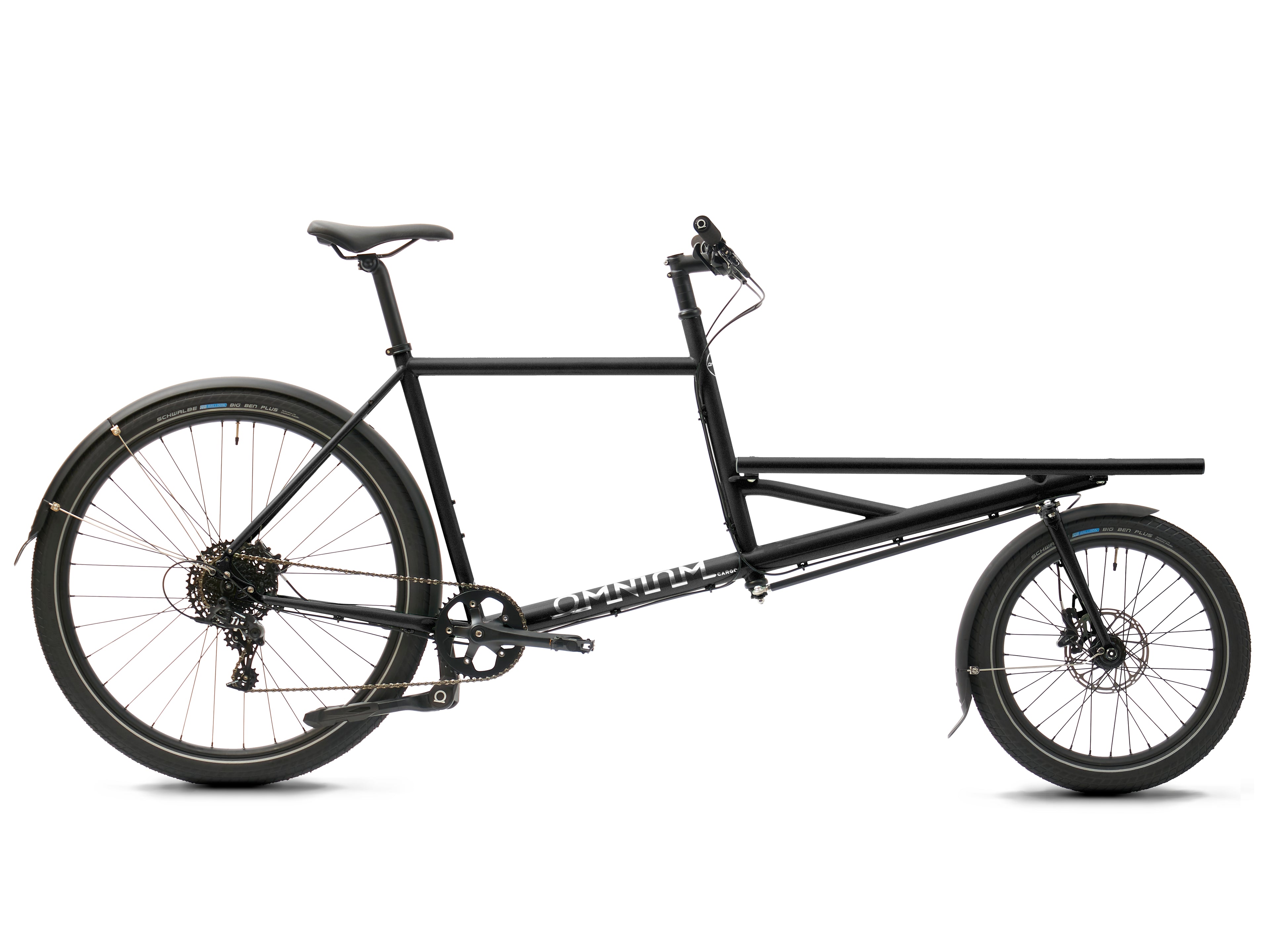

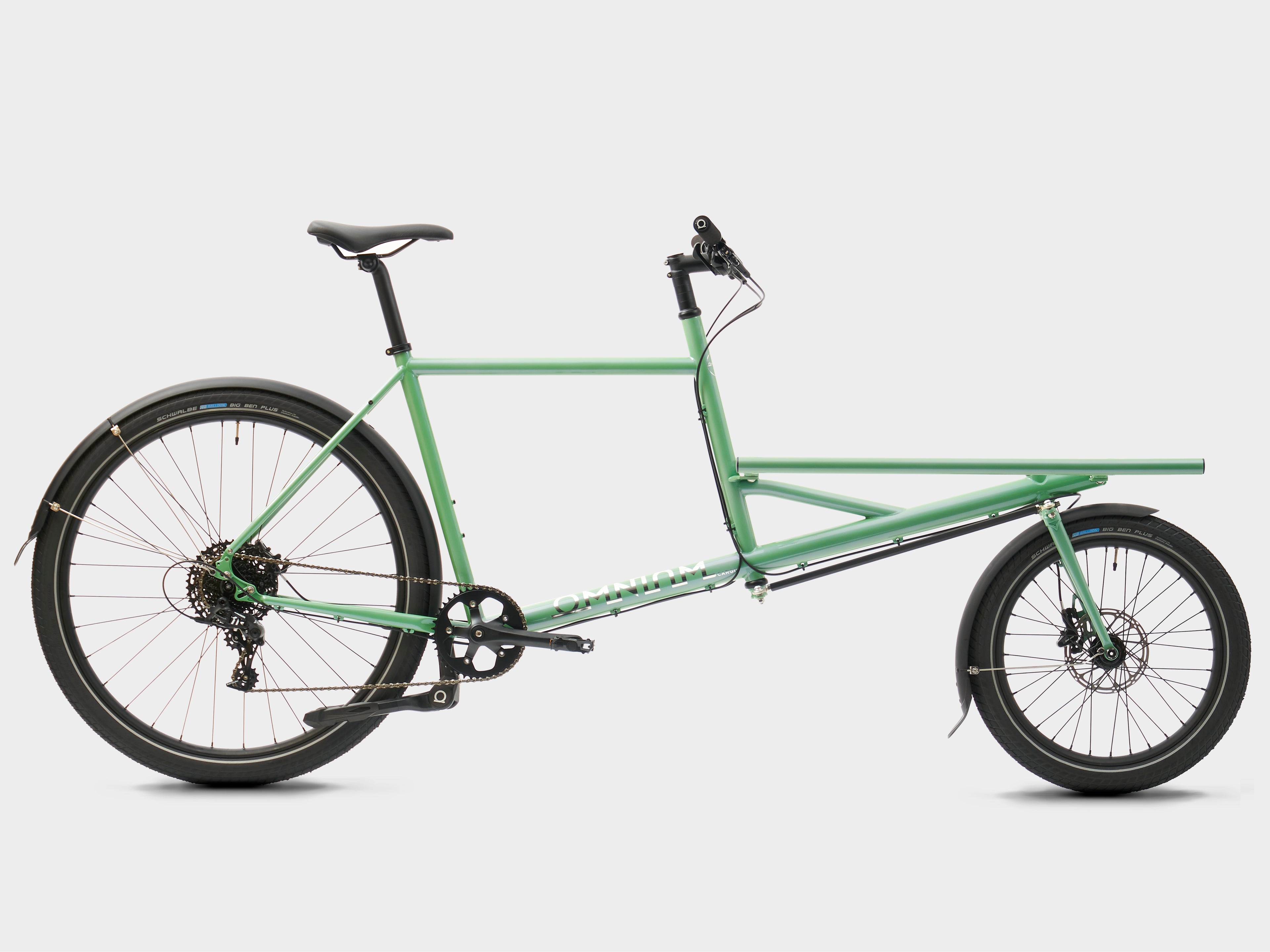

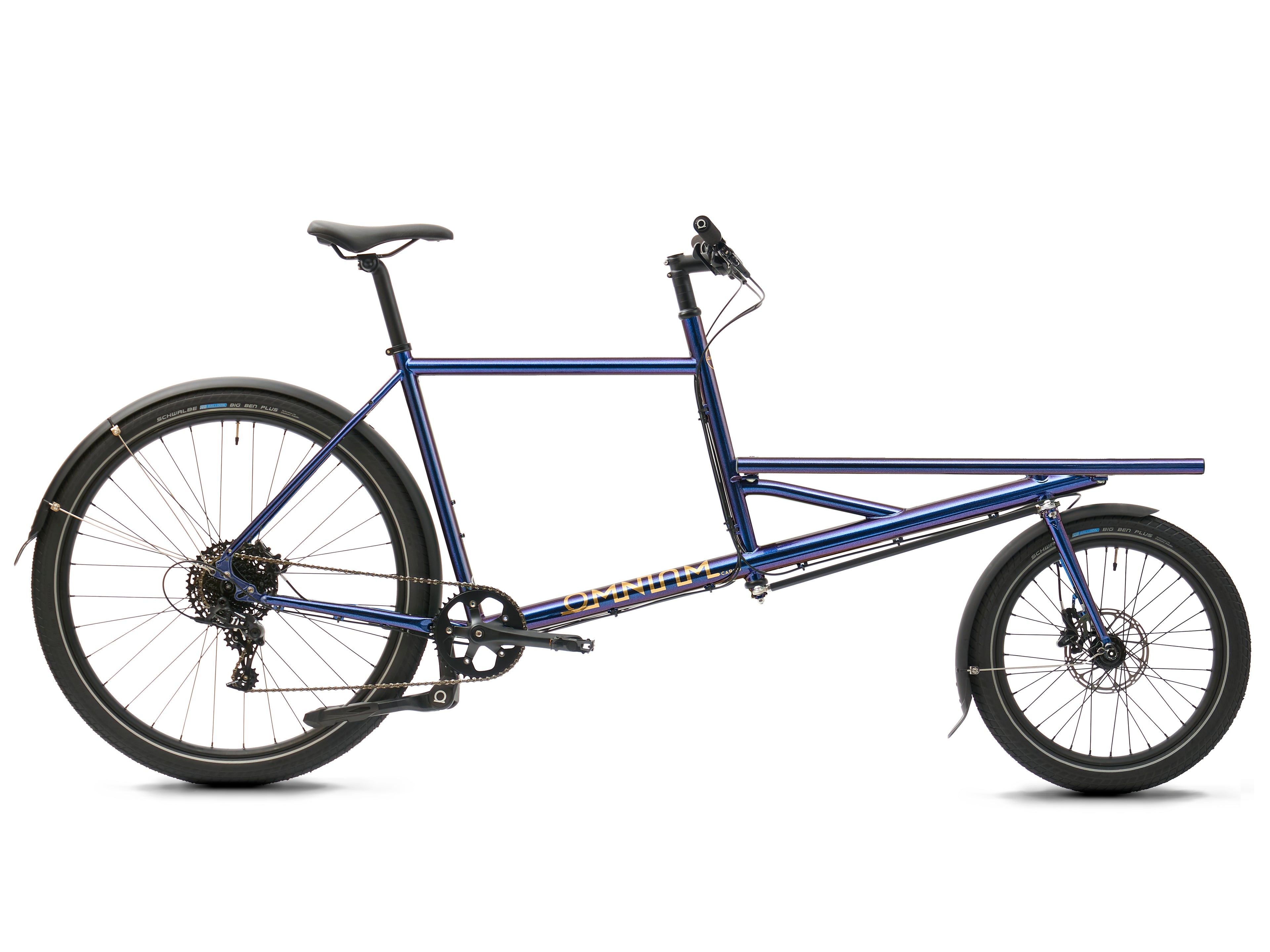

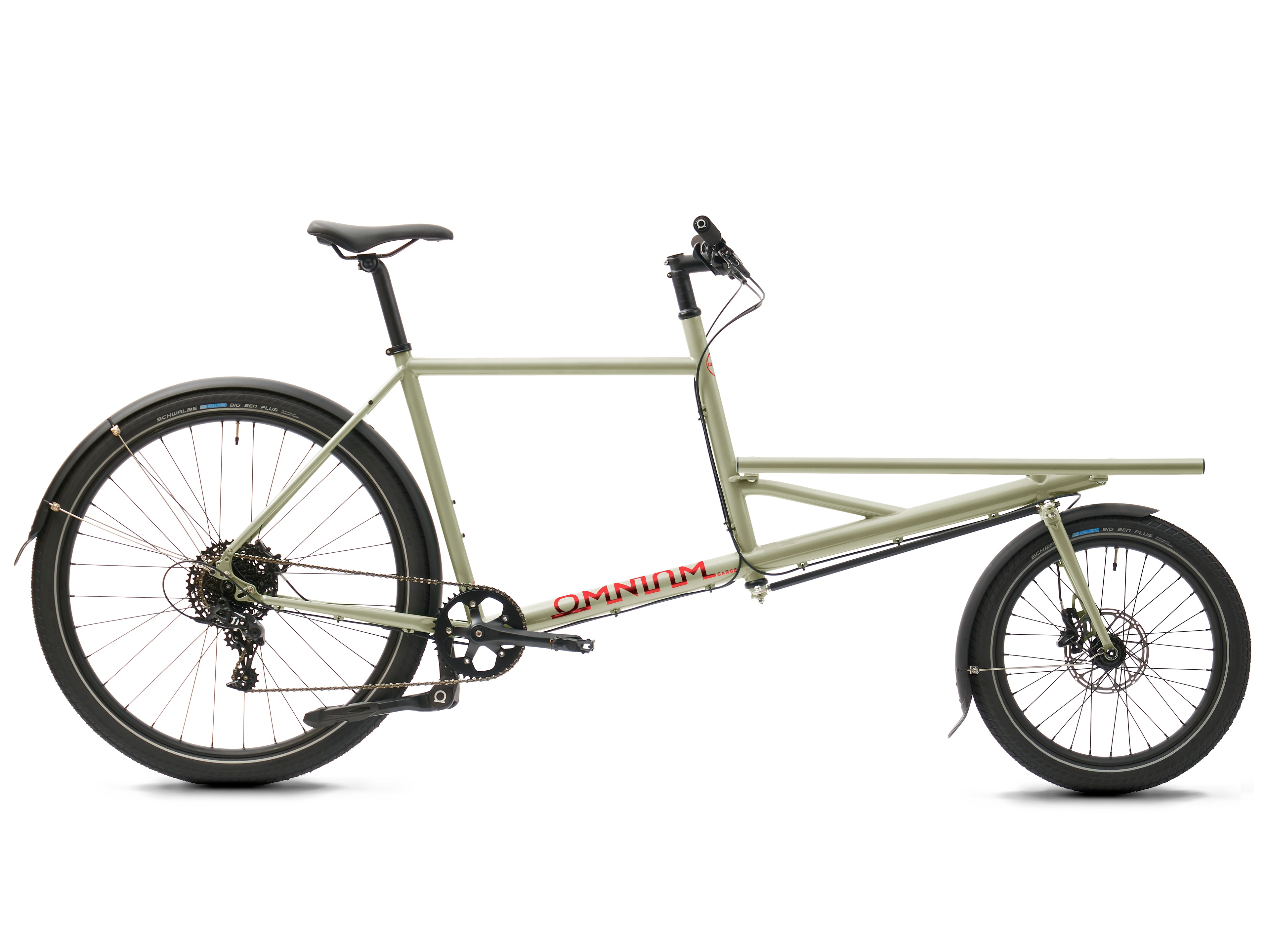

The Cargo V3, everybody! The same fast and light Omnium as you know it, now with adjustable rocker dropouts! With the big comfy tires and trusty thru axles of the WiFi, now combined with the new super functional dropouts.

The adjustable rocker dropouts allow you to run a variety of drivetrain options, ranging from external gears with a derailleur to internal gears and belt drive! Heck, you can even run it fixed if you’re that type of nut! The swappable inserts allow you to chose between thru axle and quick release depending on your rear hub spacing and gear component choice. Maybe even carry a spare set to easily replace a broken gear hanger if need be.

The Cargo is an incredibly versatile, lightweight and fast cargo bike that can handle heavy loads and big objects with ease. The best part is, it rides like a normal bike when unloaded, due to its clever construction and familiar geometry. At Crow, we use them for our daily Courier Service. We are so happy with the Omnium Cargo that we own 6 of them!

The Cargo is also the model with the longest wheelbase, which calls for very stable handling. The wheelbase also allows for great stability when loading the rack on your own, as the weight is positioned in the middle of the front wheel and the kickstand.

Need to pick up your new dream sofa? Easy. Bringing your kid to the daycare before work? No problem! Bring a computer for work or a change of clothes for the gym in a waterproof duffle and you‘re good to go, rain or shine, all year long.

The Cargo V3 is designed around 55mm (2.15″) tires front and rear. The list of benefits tied to bigger tires like these is long, but here’s a few we find important. High volume tires run at lower tire pressure, creating a significant layer of suspension between you and the ground. This results in far more comfort and control while riding on all surfaces, making easy work of rough roads, gravel, and cobblestones. The fast semi-slick tire tread design results in a minor rolling speed penalty, but more importantly increases grip, stability, and also reduces the risk of punctures.

The frame and fork have also been updated to take 15 x 100mm front and 12 x 142mm rear thru axles. Although thru axles were first seen on downhill mountain bikes in the late 90’s, most disc brake bikes these days use them. They make perfect sense on our cargo bikes. The axle bolts through a closed hole in the frame and fork, then through the hub, and threads directly into the dropout on the other side. Most importantly, this system increases stiffness, rigidity under braking and load, and reduces the risk of incorrect installation and disk brake rub.

The adjustable rocker dropouts are available as a free replacement when buying a new frame kit, or available separately.

Choose between:

• 10 x 135 QR with IS brake mount – for internal gear hubs or QR rear hubs.
• 12 x 142 thru axle with IS brake mount – the standard choice for thru axle hubs like our Omnium Wheels.

Please note, all forks will be 15×100 thru axle regardless of dropout choice.

• Height: 155 – 165cm — we recommend — size X-Small
• Height: 165 – 175cm — we recommend — size Small
• Height: 175 – 185cm — we recommend — size Medium
• Height: 185 – 195cm — we recommend — size Large
• Height: 195 – 205cm — we recommend — size X-Large

Choose SRAM Apex 11 for its smooth, reliable shifting and lightweight performance, perfect for diverse terrains. Paired with Level TL brakes, you get superior stopping power, precise modulation, and enhanced control. This combination ensures a balanced, high-performance ride ideal for both road and off-road cycling enthusiasts.

BRAKES - Sram Level TL, IS mount, 160mm rotor front and rear

GEARS - Sram Apex 11 SPD, Sram PG-1130 11-42 cassette, Sram PC-1130 11s chain

STEM - 3D forged 6061 aluminium, 80mm standard, oversize 31.8mm, matte black

HANDLEBAR - 6061 aluminium, 700mm wide, 15mm rise, oversize, matte black

SEATPOST - 31.6mm forged alloy 6061 aluminium, T6, 15mm setback, matte black

GRIPS - Omnium lock-on, black, foam

CRANKSET - Driveline, 42t, CNC Narrow Wide Chainring

BOTTOM BRACKET - FSA, Square Taper, 68mm BSA

HEADSET/S - VP Components, sealed bearings, 1-1/8″ for the rear headtube, Integrated System (IS) (angular contact without cups) 1-1/8″ front

SADDLE - Omnium Standard Saddle

TYRES - Schwalbe Big Ben Plus 55-622 (700x55mm) & 55-406 (20×2.15″).Size and model may vary based on availability.

WHEELS - Omnium WiFi Wheelset: 12 x 142mm thru axle 622 (700c) rear & 15 x 100mm thru axle 406 (20″) front, 38mm outer width rims

KICKSTAND - Omnium, cast aluminium twin-leg

PEDALS - Cast metal platform, black

MUDGUARDS - WiFi 60mm wide matte black

Choose Shimano 11 Speed with MT500 brakes for reliable performance. The Shimano drivetrain offers smooth, precise shifting, ideal for varied terrain. Combined with MT500 brakes, you get powerful, consistent stopping power. This combination ensures durability, easy maintenance, and top-notch control, perfect for the casual rider.

BRAKES - Shimano MT500, IS mount, 160mm rotor front and rear

GEARS - Shimano Deore M5100 11 SPD, Shimano SLX 11-40T cassette, KMC 11 SPD chain EPT

STEM - 3D forged 6061 aluminium, 80mm standard, oversize 31.8mm, matte black

HANDLEBAR - 6061 aluminium, 700mm wide, 15mm rise, oversize, matte black

SEATPOST - 31.6mm forged alloy 6061 aluminium, T6, 15mm setback, matte black

GRIPS - Omnium lock-on, black, foam

CRANKSET - Driveline, 42t, CNC Narrow Wide Chainring

BOTTOM BRACKET - FSA, Square Taper, 68mm BSA

HEADSET/S - VP Components, sealed bearings, 1-1/8″ for the rear headtube, Integrated System (IS) (angular contact without cups) 1-1/8″ front

SADDLE - Omnium Standard Saddle

TYRES - Schwalbe Big Ben Plus 55-622 (700x55mm) & 55-406 (20×2.15″).Size and model may vary based on availability.

WHEELS - Omnium WiFi Wheelset: 12 x 142mm thru axle 622 (700c) rear & 15 x 100mm thru axle 406 (20″) front, 38mm outer width rims

KICKSTAND - Omnium, cast aluminium twin-leg

PEDALS - Cast metal platform, black

MUDGUARDS - WiFi 60mm wide matte black

FRAME MATERIAL - Double-Butted Chromoly Steel Frame

5 SIZES - XS, S, M, L, XL

STANDARD RACK WEIGHT - 1320g +/-

RACK DIMENSIONS - 83cm x 50cm

SEAT POST DIAMETER - 31.6 mm

SEAT POST CLAMP SIZE - 34.0 mm

REAR WHEEL - TA Insert: 622, 12 x 142mm spacing, disc onlyQR Insert: 622, 10 x 135mm spacing, disc only

FRONT WHEEL - 406, 15 x 100 mm spacing, disc only

TYRE CLEARANCE, FRONT - 55mm with mudguards

TYRE CLEARANCE, REAR - 55mm with mudguards

THRU AXLE REAR - 12×142, 172mm long, 19mm thread length, 1.75mm pitch

THRU AXLE FRONT - 15×100, 125mm long, 17mm thread length, 1.5mm pitch

FORK HEADSET - 1 1/8″ Threaded Integrated with locking cap

STEERER HEADSET - 1 1/8″ Ahead

BOTTOM BRACKET - BSA 68mm

Q-FACTOR/STANCE - 145mm

GEARS - For 1x rear derailleur gear system

STANDARD RACK WEIGHT - 1320g +/-

RACK DIMENSIONS - 83cm x 50cm

RACK BOLT SIZE - M15 x 15mm

WEIGHT - Complete Medium bike weighs 20kg

MAXIMUM LOADING WEIGHT ON FRONT RACK - 85 kg

MAXIMUM TOTAL LOADING WEIGHT INCL. RIDER - 175 kg
